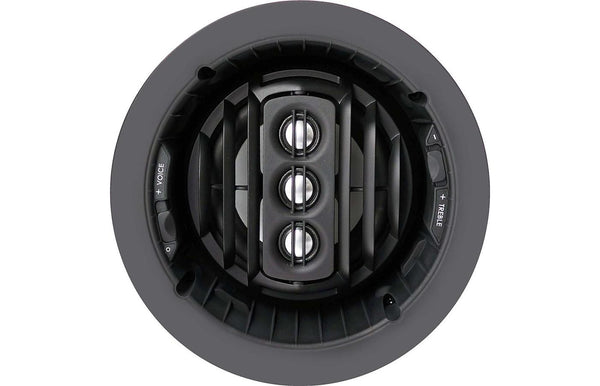

Speakercraft AIM253 AIM 5 Three Series 2 125W In-Ceiling Speaker (Each)

Model: AIM253
Quick ID: 763848836
Condition: New iElectronics is an Authorized SpeakerCraft Dealer - All products come with a manufacturer warranty
Please wait... Loading Today's Best Price

Product Details







Product Description

AIM Series 2 breaks new ground by adapting technology that was once only utilized in large sound reinforcement experiences. By incorporating multiple tweeters in a line array, AIM Series 2 delivers focused high frequencies farther into the listening area than standard tweeter configurations so that listeners may enjoy a larger sweet spot. Complementing the ARC Tweeter Array is our updated WavePlane technology that acts as an acoustic lens, focusing the high frequency audio energy into the listening environment for a cleaner, wider, and richer sound. But it's the enhanced aim-ability of the AIM Series 2 that presents all new options for sound design-from home theater to whole home audio. Simply put, every element of the AIM Series 2 has been recrafted for heightened aesthetics and heightened sound.

  • Flangeless appearance
  • 5 1/4" Aluminum Cone Woofer with 15o Pivoting Capability
  • ARC Tweeter Array incorporating three (3) - 5/8" Aluminum Dome Tweeters with 15o Pivoting & 359o Rotational Capability
  • WavePlane Technology with Vortex Eliminators
  • Acoustic Isolation Technology to minimize acoustic energy transfer to mounting and surrounding surfaces
  • Front-Mounted Switches Allow for up to +/- 3dB of Dialog Presence and Treble Adjustment
  • Timbre-Matched to all THREE Level Speakers
  • Sensitivity: 88db 1W/1m
  • Maximum SPL: 107dB
  • Power Handling: 125 Watts
  • Impedance: 8 Ohm Nominal
  • Frequency Response: 40Hz-20kHz
  • Diameter x Depth: 8" x 4 7/8" (203mm x 124mm) (with Grille)
  • Cut-Out Diameter: 6.61" or 6 5/8 (168mm)

Product Downloads

Download Product Data Sheet

Download Product Installation Guide

General Information
Manufacturer SpeakerCraft
Manufacturer Part Number AIM253
Brand Name SpeakerCraft
Product Line AIM5
Product Model AIM253
Product Name AIM5 AIM253 Speaker
Packaged Quantity 1
Product Type Speaker
Technical Information
Crossover Type 2-way
RMS Output Power 125 W
Driver Type
  • 5.25" Aluminum Woofer
  • 0.63" Aluminum Tweeter
Minimum Frequency Response 40 Hz
Maximum Frequency Response 20 kHz
Impedance 8 Ohm
Sensitivity 88 dB
Physical Characteristics
Form Factor
  • In-ceiling
  • In-wall
Depth 4.9"
Diameter 8"
Miscellaneous
Country of Origin China
Warranty
Limited Warranty Lifetime
