Atlas Sound 15A Power Sequencer and Conditioner

Model: ECS-3
Quick ID: 180713449
Condition: New Out of Stock iElectronics is an Authorized Atlas Sound Dealer - All products come with a manufacturer warranty
Please wait... Loading Today's Best Price

Product Details







Product Description

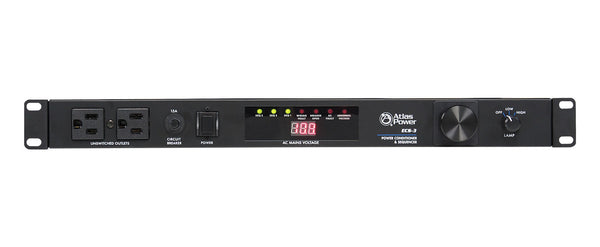

The ECS-3 has been designed to meet most installation requirements for AC power distribution and equipment power protection. The 15A compact 1 RU unit features three sequential timing sections that can be activated via the unit, or remotely. Front panel activation is via a momentary switch, while rear activation is via a momentary contact closure, or by 5-24VDC trigger feed. AC Mains Voltage can be monitored via the front panel from the precision Digital Volt Meter. To light your rack, the ECS-3 has incorporated a front panel pull-out dimmable LED tube light. The rear of the rack can be illuminated by the optional 16" gooseneck LED lamp connected via an XLR style socket. LED lamps are far superior in longevity along with heat reduction when compared to traditional incandescent lamps and the XLR base mounts are also superior to the commonly used BNC type base. If a 15A AC Mains power source is not enough to meet the amperage demand of your system, the ECS-3 provides a sequenced 24VDC output that can be used to trigger other devices such as the Atlas Sound ECM-20SH 20A stand alone AC power module.
General Information
Manufacturer Atlas Sound LP.
Manufacturer Part Number ECS-3
Brand Name Atlas Sound
Product Model ECS-3
Product Name 15A Power Sequencer and Conditioner
Product Type PDU
Technical Information
Input Receptacles 1
Output Receptacles
  • 3 x Unswitched
  • 5 x Filtered
  • 1 x Unfiltered
Protection Type
  • Over Voltage
  • Power Protection
  • Surge Protection
  • Spike Protection
  • EMI Filter
  • RFI Filter
Power Description
Input Voltage 110 V AC
Output Voltage 24 V DC
Power Rating 1.80 kVA
Input Current 15 A
Physical Characteristics
Form Factor Rack-mountable
Rack Height 1U
Height 1.8"
Width 19"
Depth 8.5"
Miscellaneous
Green Compliant Yes
Green Compliance Certificate/Authority WEEE
