Sound Masking Generator Amplifier

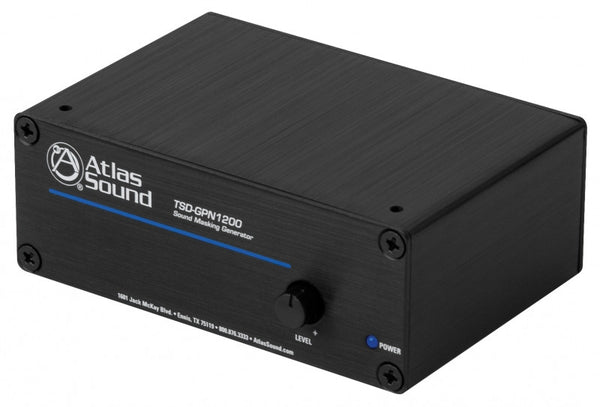

The Atlas Sound TSD-GPN1200 sound masking generator is perfectly suited for basic sound masking systems. The analog topology design eliminates repeating cycles commonly found in other manufactures low cost digital designs.

The TSD-GPN1200 allows selection between pink or white noise sources and incorporates a variable balanced outputto match input requirements of Atlas Sound equalizers and amplifiers. In addition to the line level output, a 4W, 70V output is provided to power up to six masking loudspeakers tapped at .5W each.

A variable hi-cut filter with operating range between 1kHz and 8kHz at a slope of 6dB per octave supports equalization requirements for most basic Sound Masking systems. Both outputs may be used simultaneously allowing large zones tobe addressed with external equalization and amplification while a smaller zone is powered by the internal 70.7V amplifierwith spectrum control provided by the on board hi-cut filter.

• Balanced Line Output Plus 4W, 70.7V Output
• Adjustable Gain and Hi-Cut Filter
• EQ & Gain Bypass for Line Output
• Selectable Pink or White Noise Source
• Stand Alone or Rack Mountable
• Security Covers Included for All Rear Panel Controls
