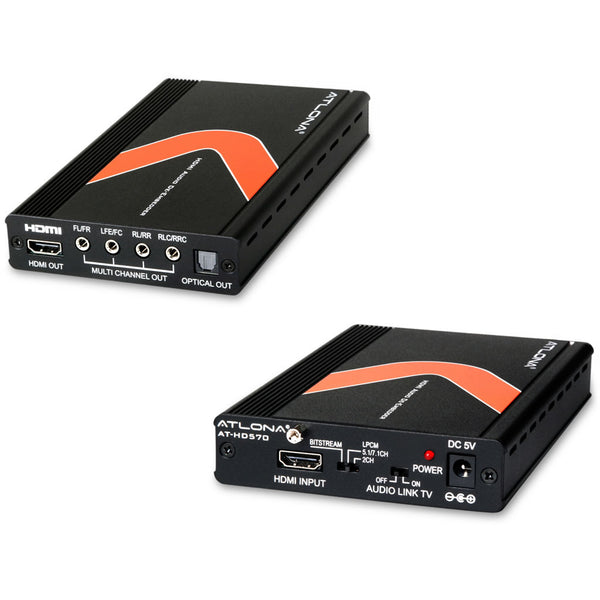

Atlona AT-HD570 HDMI Audio De-Embedder with 3D Support

Model: AT-HD570
Quick ID: 172291837
Condition: New In Stock - Usually ships within 1-3 Days iElectronics is an Authorized Atlona Retailer - All products come with a 10 year manufacturer warranty
Please wait... Loading Today's Best Price

Product Details







Product Description

The Atlona AT-HD570 is a professional quality HDMI Audio De-Embedder. Unit is capable of accepting an HDMI input signal and de-embeds the audio signal to either Optical or Multi-Channel analog audio outputs.

Use with the Atlona USB to 5V DC Power Cable to power your product. Plug directly into your TV or PC and lose the wall plug.

The Atlona AT-HD570 is a professional quality HDMI Audio De-Embedder. Unit is capable of accepting an HDMI input signal and de-embedding the audio signal to either Optical or Multi-Channel analog audio outputs. This audio decoder supports uncompressed analog LPCM 7.1, 5.1, 2ch through the mulit-channel analog outputs with Dolby Digital, LPCM 2CH and DTS output through optical connection. Supports Dolby True HD and DTS HD Master Audio pass through HDMI connection.

Key Features

  • 3D Capable
  • HDCP Compliant
  • Support CEC bypass
  • Supports digital video formats in Deep Color Mode from 25MHz to 6.75GHz for 36 bits
  • Supports high definition input up to 1080p
  • Video Pass-Through, no scaling
  • Supports HDMI signal amplification and equalization with reclocking function
  • Supports uncompressed digital audio formats LPCM 7.1, 5.1, 2ch through multi-channel analog outputs.
  • Supports Dolby TrueHD and DTS-HD Master Audio pass through HDMI output
  • Supports Dolby Digital, DTS 5.1, 2ch, and LPCM 2ch output through optical connection.
  • Integrated HDMI Booster and Repeater.

Technical Specifications

  • Input port: HDMI Female (type A)
  • Output port: HDMI Female (Type A); Optical (TosLink); 4 x 3.5mm Outs for Multi-Channel Audio
  • HDMI input/output audio format: LPCM 7.1, 5.1, 2ch and Bit stream Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS and DTS-HD Master Audio)
  • Optical Output audio format: Dolby Digital, DTS 5.1, 2ch and LPCM 2 channels
  • Multi-Channel audio format: LPCM 7.1/5.1/2 channels.
  • Operating Temperature: 0C ~ 40C
  • Power Supply: 5V/2.6A DC (110/220v)
  • Dimensions: 3.9(W) x 5.8(D) x 0.98(H) - inch
  • Weight: 0.8LB
  • Gross Weight: 2LB

Product Downloads

Download Product Manual

Download Product CAD files

General Information
Manufacturer Atlona Technologies
Manufacturer Part Number AT-HD570
Brand Name Atlona
Product Model AT-HD570
Product Name Atlona AT-HD570 HDMI Audio De-Embedder with 3D Support
Technical Information
Connectivity Technology Wired
Number of Input Devices Supported 1
Number of Output Devices Supported 1
Maximum Operating Distance 65.62 ft
Interfaces/Ports
Network (RJ-45) Yes
HDMI In Yes
HDMI Out Yes
Number of Network (RJ-45) Ports 1
Number of HDMI Inputs 1
Physical Characteristics
Color Black
Height 1.0"
Width 3.9"
Depth 5.8"
Weight (Approximate) 10.58 oz
Miscellaneous
Package Contents
  • 1 x AT-HD570 Audio De-Embedder
  • 5V DC Power Supply Adaptor
  • Operation Manual
  • Warranty
    Limited Warranty 3 Year Limited
