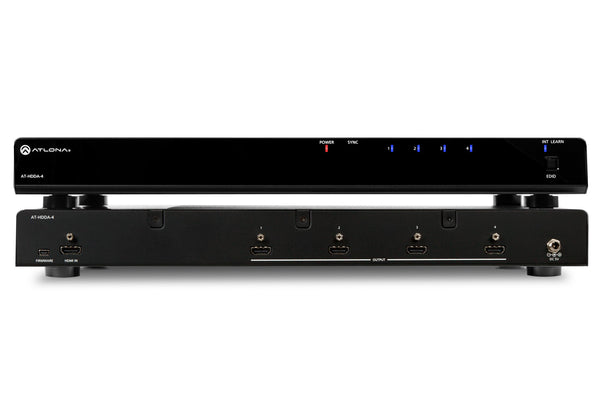

Atlona AT-HDDA-4 1 x 4 HDMI Distribution Amplifier

Model: AT-HDDA-4
Quick ID: 183644609
Condition: New Out of Stock iElectronics is an Authorized Atlona Retailer - All products come with a 10 year manufacturer warranty

Have The Price Emailed to YouWhat is this?

If you would like to receive pricing on this product, please enter your email address below and we will contact you via email with your request.

Please wait... Loading Today's Best Price

Product Details







Product Description

Finally, a distribution amplifier that supports Ultra HD (4Kx2K)! 4 zones with advanced EDID management, ideal for displays using cutting-edge Ultra HD resolution.

Ultra HD for Vivid Details

HDDA-4 passes 4Kx2K, the highest currently available resolution, plus Dolby True HD, DTS HD Master Audio, and 3D up to 48-bit deep color.

Advanced EDID Management

Learns reference EDID from first connected output display and mirrors to all outputs ensuring a reliable and uninterrupted A/V signal.

Additional Features

  • Supports cascading up to 8x (@1080p)
  • Link status LED for source and outputs
  • Supports pass through of all 3D formats
  • Pass through support of all Lossy and Lossless audio (up to Dolby TrueHD or DTS-HD Master Audio).
  • Locking HDMI port
  • Field serviceable firmware port
  • Includes dual purpose wall/rack mount ears

Compatibility

Use with Atlona HDBaseT extender collection, HDBaseT distribution amplifier collection, or HDMI-to-HDMI matrix switcher collection

  • AT-HDTX - Atlona HDBaseT TX HDMI Box
  • AT-HDRX - Atlona HDBaseT RX HDMI Box
  • AT-HDWP - Atlona HDBaseT RX HDMI 2-Gang US Wall Plate
  • AT-HDWP-UK - Atlona HDBaseT RX HDMI 1-Gang UK Wall Plate
  • AT-HDCAT-4 - Atlona 2 x 4 HDMI to HDBaseT Distribution Amplifier
  • AT-HDCAT-8 - Atlona 2 x 8 HDMI to HDBaseT Distribution Amplifier
  • AT-HDCAT-8ED - Atlona 2 x 8 HDMI to HDBaseT Extended Distance Distribution Amplifier
  • AT-H2H-44M - Atlona 4 x 4 HDMI Matrix Switcher
  • AT-H2H-88M - Atlona 8 x 8 HDMI Matrix Switcher

©2013 Atlona Inc. All rights reserved. "Atlona" the Atlona logo are registered trademarks of Atlona Inc. All other brand names, trademarks, servicemarks, registered trademarks, and registered servicemarks are the property of their respective owners.

General Information
Manufacturer Atlona
Manufacturer Part Number AT-HDDA-4
Resolution
Video 480i@60Hz, 480p@59.94/60Hz, 576i@50Hz, 576p@50Hz, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 3840×2160@24/25/30/50*/60Hz*, 4096×2160@24/25/30/50*/60Hz*
* 4096×2160@50/60Hz & 3840×2160@50/60Hz supported @ Chroma subsampling 4:2:0 8-bit only
VESA 640×480@60Hz, 800×600@60/75Hz, 1024×768@60/75Hz, 1280×768@60/75Hz, 1280×800@60Hz, 1280×1024@60/75Hz, 1366×768@60Hz, 1440×900@60/75Hz, 1400×1050@60Hz, 1600×1200@60Hz, 1600×900@60Hz, 1680×1050@60Hz, 1920×1200@60Hz
Colorspace RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color depth 8-bit, 10-bit, 12-bit
Audio
Formats PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Distance
HDMI IN up to 15m/50ft (@1080p 8-bit)
HDMI OUT up to 15m/50ft (@1080p 12-bit)
4K up to 5m/15ft
Signal
Bandwidth 10.2 Gbps
CEC No
HDCP Compliant
Temperature
Operating 0°C to 40°C/32°F to 104°F
Storage -20°C to 60°C/-4°F to 140°F
Humidity 20 to 90% non-condensing
Power
Consumption 5W
Supply Input: AC100~240V 50/60Hz Output: DC 5V/2.6A
Dimension
H x W x D 44 x 433.8 x 255 (mm)/1.73 x 17.08 x 10.04 (inch)
w/feet 55.15 x 433.8 x 255 (mm)/2.17 x 17.08 x 10.04 (inch)
Rack Unit 1
Weight
Device 2.61kg/5.75lbs
Shipping 4.20kg/9.25lbs
Certification
Power Supply CE, FCC, cULus
Ports
HDMI IN 3D, 4K, 1920×1200, Dolby TrueHD, DTS-HD Master Audio
HDMI OUT 3D, 4K, 1920×1200, Dolby TrueHD, DTS-HD Master Audio
Mini USB Firmware updating
Package
Contents
  • AT-HDDA-4
  • 5V DC power supply adaptor
  • Pair of wall/rack mount ears
  • User manual
