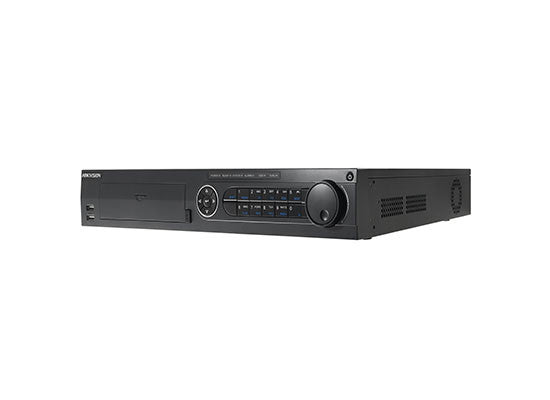

Hikvision DS-7716NI-SP/16-4TB 16-Channel Embedded Plug n' Play NVR with 4TB HDD

  • Hikvision DS-7716NI-SP/16-4TB 16-Channel Embedded Plug n' Play NVR with 4TB HDD
  • Hikvision DS-7716NI-SP/16-4TB 16-Channel Embedded Plug n' Play NVR with 4TB HDD
  • Hikvision DS-7716NI-SP/16-4TB 16-Channel Embedded Plug n' Play NVR with 4TB HDD
Out of Stock
Quick ID: 8813026002
Price: $4,196.50
Order By Phone

Product Description

  • Third-party network cameras supported
  • Up to 5MP resolution recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • Plug & Play with 16 independent PoE network interfaces
  • 4 SATA HDD interface up to 4TB each
  • HDD quota and group management
Video/Audio Input
IP Video Input: 16-ch
Two-way audio input: 1-ch, BNC (2.0 Vp-p, 1kO)
Incoming bandwidth: 80Mbps
Video/Audio Output
CVBS Output: 1-ch, BNC(1.0Vp-p, 75O)
Resolution: 704×576(PAL); 704×480(NTSC)
HDMI Output: 1-ch, resolution:
1920 × 1080P / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz,
1024 × 768 / 60Hz
VGA Output: 1-ch, resolution:
1920 × 1080P / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz,
1024 × 768 / 60Hz
Recording Resolution: 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Audio Output: 2-ch, BNC(Linear Electrical Level, 600O)
Synchronous Playback: 16-ch
Playback resolution: 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Hard Disk
Capacity: Up to 4TB capacity for each disk
SATA: 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (optional), or 4HDDs
eSATA: 1 eSATA interface
External Interface
Network Interface: 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
16 independent 100 Mbps PoE network interfaces
Serial Interfaces: 1 RS232 serial interface
1 RS485 serial interface
1 keyboard 485 serial interface
USB Interface: 3 × USB 2.0
Alarm In: 16
Alarm Out: 4
General
Power Supply: 100 ~ 240VAC, 6.3A, 50 ~ 60Hz
Consumption: < 40 W
Working Temperature: 10 °C ~ +55 °C
Working Humidity: 10% ~ 90%
Chassis: 19-inch rack-mounted 1.5U chassis
Dimension: 440 × 390 × 70 mm
Weight(without HDD): < 8 Kg (17.64 lb) ( without hard disk or DVD-R/W )
General Information
Manufacturer Hikvision Usa Inc.
Manufacturer Part Number DS-7716NI-SP/16-4TB
