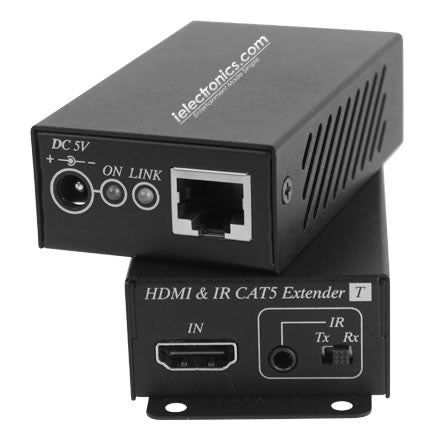

iElectronics HDBaseT™ HDMI over Single Cat5e/6 Extender, Bi-directional IR

Quick ID: 8812935314
Condition: New
Please wait... Loading Today's Best Price

Product Details




Product Description

You have signal extenders - you've installed them and you've used them. Now, when you go the distance with your video and audio signals you don't have to deal with the loss of resolution quality. This product takes your standard HDMI over Single Cat5e/6 Extender, and ramps it up several notches with HDBaseT technology. From now on, your long distance signal runs will not be hampered with compressed video and audio. Instead, what you'll get is full HD / 3D and 2K / 4K uncompressed video in up to 230 ft! In addition, you'll receive all standard audio formats - Dolby Digital, DTS, Dolby TrueHD, and DTS HD-Master Audio - in high-quality, uncompressed form. And, to top it off, HDBaseT technology enables this device to extend a bi-directional IR signal. Combine those features with a compact, all-metal housing and sturdy rack ears, and you have the be-all and end-all HDMI extender.

HDBaseT HDMI Extender

HDBaseT Technology

This product is certified by HDBaseT. HDBaseT is a connectivity standard for whole-home and commercial distribution of uncompressed HD multimedia content. It's a unique solution that is revolutionizing key industries with its combination of distinct benefits. Those include distance, elegance, quality, simplicity and affordability. With HDBaseT technology, this extender is able to reach up to 230ft. (Distance) with a single category cable (Elegance)! What's more, it delivers smooth, uncompressed video in up to 4K resolution (Quality), it uses a standard Cat5e/6 twisted-pair LAN cable with standard RJ-45 connectors - enabling easy termination (Simplicity), and it relies on low cost Cat5e/6 infrastructure and hence greatly reduces installation costs (Affordability). HDBaseT technology is, simply put, a true industry standard.

Making it Easy

The great thing about this new technology is that you get more control. And, as a result, you have to work less. You won't have to spend anymore install time going back and forth just to mess with EQ or EDID settings. What's more, the bi-directional IR let's you set either side as the transmitter or the receiver.

4K Transmission with Full 3D!

This HDMI extender is HDMI 1.4 and HDCP compliant. It transmits uncompressed video over a long distance, and it also supports up to 4K resolution with full 3D... It's basically future-proof!

7.1 Dolby Digital

Just like its video transmission, this device doesn't skimp on its audio pass-thru. It's capable of sending LPCM 7.1, Dolby TrueHD, and DTS-HD MA - all uncompressed.

Life is Just Better When It's Simple

All of the fine-tuned circuitry is enclosed in our durable low profile metal cases and comes with mounting hardware preparing you for all your installation needs

General Information
Manufacturer iElectronics
Manufacturer Part Number IELEHDBT
Manufacturer UPC 046144962682
Resolution Up to 1080p / 60Hz / 48 bit
Distance 200ft (60M) by Cat5e/6; 230ft (70M) by Cat6a
HDMI Connector Type A
IR Carrier Frequency 30-60Khz
IR Angle Transmitter: ±30, Receiver: ±55
IR Distance 16ft (5M)
Power Supply Regulated DC5V 2A
Power Consumption Transmitter: 380mA (Max), Receiver: 820mA (Max)
Temperature Operation: 0 to 55°, Storage: -20 to 85°, Humidity: up to 95%
Dimensions (in.) 1.9 x 3.6 x 1
Weight (lbs.) Transmitter: 0.28, Receiver: 0.30
