Peerless-AV Peerless SmartMount SP850-UNL Pull-Out Swivel Mount

Model: SP850-UNL
Quick ID: 9046222482
Condition: New iElectronics is an Authorized Peerless-AV Dealer - All products come with a manufacturer warranty
Please wait... Loading Today's Best Price

Product Details




Product Description

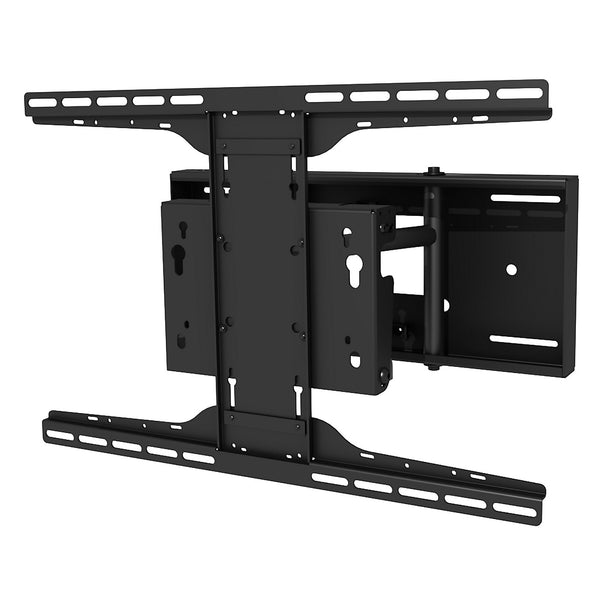

The SmartMount SP850-UNL Pull-Out Swivel Wall Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP850 acts as a flat or tilting wall mount. At only 2.25" away from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850's sturdy arm construction smoothly glides the screen out 10.75" from the wall and allows the screen to pivot up to 45 degrees. This feature not only enables the screen to be positioned for an optimal viewing angle, but it also provides easy access to the back of the screen for maintenance. The SP850 is also ideal in applications where the screen needs to be recessed into a cubby hole, custom frame or aligned into a video wall. Mounts to 16" wood studs, concrete or cinder block.

General Information
Manufacturer Peerless Industries, Inc
Manufacturer Part Number SP850-UNL
Brand Name Peerless-AV
Product Line SmartMount
Product Model SP850-UNL
Product Name Pull-out Pivot Wall Mount For 32"-80" Displays
Packaged Quantity 1
Product Type Wall Mount
Product Information
Device Supported Flat Panel Display
Maximum Load Capacity 150 lb
Minimum Screen Size Supported 32"
Maximum Screen Size Supported 58"
Physical Characteristics
Color Black
Height 9"
Width 21"
Depth 10.8"
Weight (Approximate) 20.10 lb
Package Contents

SmartMount SP850-UNL Pull-Out Swivel Mount:

  • 1 x Adapter bracket
  • 2 x Shallow adapter bracket
  • 2 x Deep adapter bracket
  • 1 x Allen wrench
  • 4 x (M5 x 10mm) Screw
  • 1 x Wall mount assembly
  • 1 x Locking tab
  • 1 x (0.219 ID x 0.5 OD x 0.125H) Spacer
  • 4 x (#14 x 2.5") Hex head wood screw
  • 4 x Alligator anchor
  • 2 x 18" Polyester mesh sleeve
  • 4 x Cable tie
  • 2 x (M4 x 5 mm) Phillips screw
  • 1 x Bumper strip
  • 2 x Plastic cable mount
  • 4 x (M10 x 15 mm) Socket head screw
  • 4 x (0.198 x 0.313 x 0.437H) Retaining spacer
  • 1 x 4 mm Security allen wrench
  • 4 x (M3 x 4 mm) Phillips screw
  • 2 x Spring clip
  • 5 x (M5 x 10 mm) Screw
  • 4 x (M4 x 12 mm) Screw
  • 4 x (M4 x 20 mm) Screw
  • 1 x (M5 x 40 mm) Screw

32" to 58" LCD & Plasma Flat Panel Screens

Country of Origin United States
Limited Warranty 5 Year
