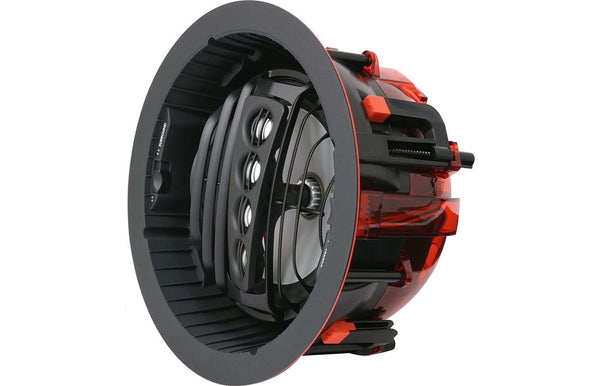

Speakercraft AIM273SR AIM 7 SR Three Series 2 7" In-Ceiling Speaker (Each)

Model: AIM273SR
Quick ID: 1091088581
Condition: New iElectronics is an Authorized SpeakerCraft Dealer - All products come with a manufacturer warranty
Please wait... Loading Today's Best Price

Product Details







Product Description

AIM Series 2 breaks new ground by adapting technology that was once only utilized in large sound reinforcement experiences. By incorporating multiple tweeters in a line array, AIM Series 2 delivers focused high frequencies farther into the listening area than standard tweeter configurations so that listeners may enjoy a larger sweet spot. Complementing the ARC Tweeter Array is our updated WavePlane technology that acts as an acoustic lens, focusing the high frequency audio energy into the listening environment for a cleaner, wider, and richer sound. But it's the enhanced aim-ability of the AIM Series 2 that presents all new options for sound design-from home theater to whole home audio. Simply put, every element of the AIM Series 2 has been recrafted for heightened aesthetics and heightened sound.AIM Series 2 breaks new ground by adapting technology that was once only utilized in large sound reinforcement experiences. By incorporating multiple tweeters in a line array, AIM Series 2 delivers focused high frequencies farther into the listening area than standard tweeter configurations so that listeners may enjoy a larger sweet spot. Complementing the ARC Tweeter Array is our updated WavePlane technology that acts as an acoustic lens, focusing the high frequency audio energy into the listening environment for a cleaner, wider, and richer sound. But it's the enhanced aim-ability of the AIM Series 2 that presents all new options for sound design-from home theater to whole home audio. Simply put, every element of the AIM Series 2 has been recrafted for heightened aesthetics and heightened sound.

  • For use as a surround effects speaker due to its wide dispersion characteristics
  • Flangeless appearance
  • 7" Aluminum Cone Woofer with 15 degrees Pivoting Capability
  • Multi-Axis ARC Tweeter Array incorporating four (4) - 5/8" Aluminum Dome Tweeters with 15 degrees Pivoting & 359 degrees Rotational Capability
    • The Multi-Axis ARC Tweeter Array adds a "slight twist" to the ARC array putting two of the 5/8" Aluminum Dome Tweeters on a slightly different axis than the other two
  • WavePlane Technology with Vortex Eliminators
  • Acoustic Isolation Technology to minimize acoustic energy transfer to mounting and surrounding surfaces
  • Front-Mounted Switches Allow for up to +/- 3dB of Treble Adjustment and for the selection of Direct or Diffuse Sound Characteristic
  • Timbre-Matched to all THREE Level Speakers
  • Sensitivity: 89db 1W/1m
  • Maximum SPL: 109dB
  • Power Handling: 150 Watts
  • Impedance: 8 Ohm Nominal
  • Frequency Response: 40Hz-20kHz
  • Diameter x Depth: 9 5/8" x 5 1/2" (244mm x 140mm) (with Grille)
  • Cut-Out Diameter: 8.27" or 8 1/4" (210mm)

Product Downloads

Download Product Data Sheet

Download Product Installation Guide

General Information
Manufacturer SpeakerCraft
Manufacturer Part Number AIM273SR
Brand Name SpeakerCraft
Product Line AIM7
Product Model AIM273SR
Product Name AIM7 AIM273SR Speaker
Packaged Quantity 1
Product Type Speaker
Technical Information
Crossover Type 2-way
RMS Output Power 150 W
Driver Type
  • 0.63" Aluminum Tweeter
  • 7" Aluminum Woofer
Minimum Frequency Response 40 Hz
Maximum Frequency Response 20 kHz
Impedance 8 Ohm
Sensitivity 89 dB
Physical Characteristics
Color White
Form Factor
  • In-ceiling
  • In-wall
Height 13"
Width 9.6"
Depth 5.5"
Length 13"
Diameter 9.6"
Cutout Diameter 8.27"
Weight (Approximate) 6 lb
Miscellaneous
Country of Origin China
Warranty
Limited Warranty Lifetime
