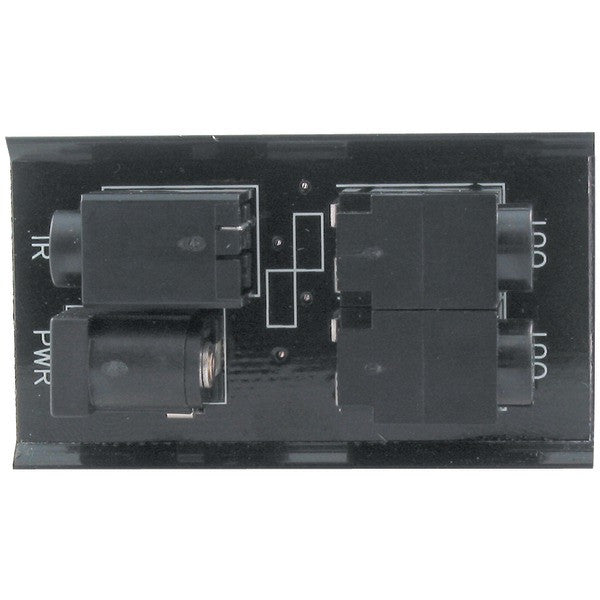

Xantech CB20 1-Zone Connecting Block With 2 Emitter Ports

Model: CB20
Quick ID: 3158658373
Condition: New
Please wait... Loading Today's Best Price

Product Details




Product Description

You can now control your A/V components in another room using your standard IR remote controls, thanks to Xantech. The 1-Zone Connecting Block is an integral part of Xantech's IR repeating system, which sends IR signals over unshielded 3-conductor inter-room cable (sold separately). Any IR receiver is required, sold separately, as are IR emitters, which attach to your components, delivering your IR signals. The 1-Zone Connecting Block (1 Emitter Out) provides a low-cost means of connecting Xantech IR receivers to two single or dual emitters and a power supply. The 1-Zone Connecting Block has two inputs: 12v power and a 3.5mm stereo mini jack, which will accept any Xantech IR receiver equipped with a 3.5mm stereo mini plug, such as the Dinky Link IR Sensor (sold separately). This connecting block features two 3.5mm mini jack outputs for emitters. Power for the CB20 1-Zone Connecting Block is supplied through its 2.1mm coaxial power jack for Xantech's 12-Volt Regulated Power Supply, (sold separately).

  • Connects two emitter ports and power supply to Xantech IR Receivers that use a stereo mini plug
  • 3.5 mm stereo mini jack for quick-connect IR receivers
  • Two 3.5 mm mono mini jacks with 470-Ohm resistors drive two single or two dual emitters
  • 2.1 mm coaxial power jack
  • Uses either the 781RG or 782-00 power supply
  • Dimensions: 2 1/8" x 1 1/4" x 3/4" (54mm x 32mm x 19mm)

Product Download

Download Product Manual

General Information
Manufacturer Xantech/The Avc Group
Manufacturer Part Number CB20
Whats Included
  • 1x - Xantech CB20 Connecting block
  • 1x - Mounting tape
  • 1x - Instructions
Inputs 12v DC, 3.5mm mini plug for IR receiver
Outputs 2 3.5mm mini jacks for emitters
Power Requirements 12 V
